WAYON维安代理商在电动工具马达驱动 BMS上的MOS管选型-代理商京柏微

场效应管主要有两种类型，分别是结型场效应管(JFET)和绝缘栅场效应管(MOS管)

在线咨询 QQ咨询

产品概述

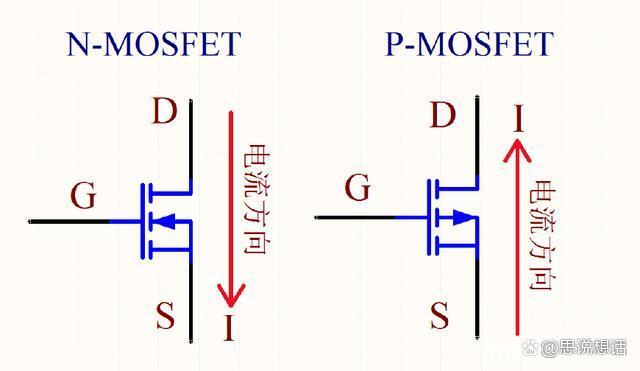

Wayon维安MOS管：N-MOS和P-MOS区别：
1、三个极怎么判

MOS管的管脚：源极S（source）、栅极G（Gate）和漏极（Drain），

MOS管有两种：一个是PMOS管，一个是NMOS管；
WAYON代理商，维安代理商，电动工具MOS，马达驱动MOS，BMS MOS，维安MOS管选型

Nmos管：漏极D接正极，源极S接负极，栅极G正电压时导电沟道建立

Pmos管，漏极D接负极，源极S接正极，栅极G负电压时，导电沟道建立

导通特性:

NMOS是栅极高电平|VGS| > Vt（G电位比S电位高）导通,低电平断开,可用来控制与地之间的导通。|VGS| > Vt（G电位比S电位低）导通,高电平断开,可用来控制与电源之间的导通。

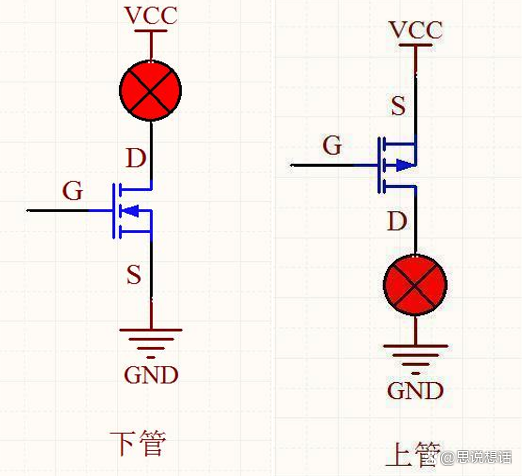

MOS管应用:

使用NMOS当下管，S极直接接地，只需将G极电压固定值为5V即可导通（该5V视MOS管型号而定）

使用PMOS当上管，S极直接接电源VCC（5V），只需将G极电压固定值为0V即可导通。

WAYON代理商，维安代理商，电动工具MOS，马达驱动MOS，BMS MOS，维安MOS管选型

Part No.	Package	Configuration	Type	VDS（V）	Rds(on)
Part No.	Package	Configuration	Type	VDS（V）	mΩ(Max.)
20V MOSFET
WMO90N02T1	TO-252	Single	N	20	4.5
WMO60N02T1	TO-252	Single	N	20	6
30V MOSFET
WMB90N03T1	PDFN5*6-8L	Single	N	30	3
WMO150N03T1	TO-252	Single	N	30	3.2
WMM180N03T1	TO-263	Single	N	30	3.2
WMQ80N03T1	PDFN3*3-8L	Single	N	30	4
WMB108N03T1	PDFN5*6-8L	Single	N	30	4
WMO96N03T1	TO-252	Single	N	30	4
WMQ40N03T1	PDFN3*3-8L	Single	N	30	5.5
WMB81N03T1	PDFN5*6-8L	Single	N	30	5.5
WMO80N03T1	TO-252	Single	N	30	5.5
WMQ46N03T1	PDFN3*3-8L	Single	N	30	8.5
WMB58N03T1	PDFN5*6-8L	Single	N	30	8.5
WMO55N03T1	TO-252	Single	N	30	8.5
WMQ37N03T1	PDFN3*3-8L	Single	N	30	12
WMB46N03T1	PDFN5*6-8L	Single	N	30	12
WMQ36DN03T1	PDFN3*3-8L	Dual	N	30	12.8
WMQ28N03T1	PDFN3*3-8L	Single	N	30	18
40V MOSFET
WMB018N04LG2	PDFN5*6-8L	Single	N	40	1.8
WMB032N04LG2	PDFN5*6-8L	Single	N	40	3.2
WMB70N04T1	PDFN5*6-8L	Single	N	40	6.5
WMQ55N04T1	PDFN3*3-8L	Single	N	40	6.6
WMO75N04T1	TO-252	Single	N	40	6.6
WMO60N04T1	TO-252	Single	N	40	7
WMQ50N04T1	PDFN3*3-8L	Single	N	40	7.5
WMB56N04T1	PDFN5*6-8L	Single	N	40	7.6
WMQ30N04T1	PDFN3*3-8L	Single	N	40	11.5
60V MOSFET
WMB025N06LG2	PDFN5*6-8L	Single	N	60	2.8
WMB025N06HG2	PDFN5*6-8L	Single	N	60	3.2
WMB048NV6LG2	PDFN5*6-8L	Single	N	65	5.2
WMB048NV6HG2	PDFN5*6-8L	Single	N	65	5.2
WMO048NV6LG2	TO-252	Single	N	65	5.2
WMB060N06LG2	PDFN5*6-8L	Single	N	60	6
WMO060N06LG2	TO-252	Single	N	60	6
WMO70N06T1	TO-252	Single	N	60	7.4
WMO80N06T1	TO-252	Single	N	60	7.6
WMK80N06T1	TO-220	Single	N	60	7.6
WMB75N06T1	PDFN5*6-8L	Single	N	60	8.5
WMO35N06T1	TO-252	Single	N	60	20
WMQ30N06TS	PDFN3*3-8L	Single	N	60	20
WMS09N06TS	SOP-8L	Single	N	60	20
WMO50N06TS	TO-252	Single	N	60	25
WMO25N06TS	TO-252	Single	N	60	32
70V MOSFET
WMB100N07TS*	PDFN5*6-8L	Single	N	70	7
WMO100N07T1	TO-252	Single	N	70	7
WMK100N07TS*	TO-220	Single	N	70	7
80V MOSFET
WMLL029NV8HGS	TOLL	Single	N	85	3
WMM040N08HGS	TO-263	Single	N	80	4
WMB040N08HGS	PDFN5*6-8L	Single	N	80	4
WMM053NV8HGS	TO-263	Single	N	85	5.5
WMB053NV8HGS	PDFN5*6-8L	Single	N	85	5.6
WMB060N08LG2	PDFN5*6-8L	Single	N	80	6
WMB060N08HG2	PDFN5*6-8L	Single	N	80	6
WMO060N08HG2	TO-252	Single	N	80	6
WMM060N08HG2	TO-263	Single	N	80	6
WMO053NV8HGS	TO-252	Single	N	85	6.2
WMQ060N08LG2	PDFN3*3-8L	Single	N	80	6.8
WMK90N08TS	TO-220	Single	N	80	7.2
WMO90N08TS	TO-252	Single	N	80	7.2
WMK80N08TS	TO-220	Single	N	80	12
WMO80N08TS	TO-252	Single	N	80	12
100V MOSFET
WMK028N10HG2	TO-220	Single	N	100	2.8
WMM028N10HG2	TO-263	Single	N	100	2.8
WMM043N10HGD	TO-263	Single	N	100	4.3
WMK043N10HGD	TO-220	Single	N	100	4.3
WMB043N10HGS	PDFN5*6-8L				5
WMK043N10HGS	TO-220				5
WMM053N10HGD	TO-263	Single	N	100	5.5
WMK053N10HGD	TO-220	Single	N	100	5.5
WMB060N10HGS	PDFN5*6-8L	Single	N	100	6
WMK060N10HGS	TO-220	Single	N	100	6
WMM060N10HGS	TO-263	Single	N	100	6
WMB080N10HG2	PDFN5*6-8L	Single	N	100	8
WMO080N10HG2	TO-252	Single	N	100	8
WMB175N10HG2	PDFN5*6-8L	Single	N	100	17.5
WMO175N10HG2	TO-252	Single	N	100	17.5
WMK175N10HG2	TO-220	Single	N	100	17.5
120V MOSFET
WMK049N12HG2	TO-220	Single	N	120	4.9
WMM049N12HG2	TO-263	Single	N	120	4.9
WMK058N12HG2	TO-220	Single	N	120	5.8
WMM058N12HG2	TO-263	Single	N	120	5.8
WMB072N12HG2	PDFN5*6-8L	Single	N	120	7.2
WMK072N12HG2	TO-220	Single	N	120	7.2
150V MOSFET
WMK161N15T2	TO-220	Single	N	150	6
WMM161N15T2	TO-263	Single	N	150	6
WML071N15HG2	TO-220F	Single	N	150	7.1
WMK071N15HG2	TO-220	Single	N	150	7.1
WMM071N15HG2	TO-263	Single	N	150	7.1
WMB115N15HG2	PDFN5*6-8L	Single	N	150	11.5
WMK115N15HG2	TO-220	Single	N	150	11.5
WMM115N15HG2	TO-263	Single	N	150	11.5
WMB198N15HG2	PDFN5*6-8L	Single	N	150	19.8
WMK198N15HG2	TO-220	Single	N	150	19.8
WMO28N15T2	TO-252	Single	N	150	48
WMO20N15T2	TO-252	Single	N	150	70
200V MOSFET
WMB340N20HG2	PDFN5*6-8L	Single	N	200	34
WMK340N20HG2	TO-220	Single	N	200	34
WMM340N20HG2	TO-263	Single	N	200	34
